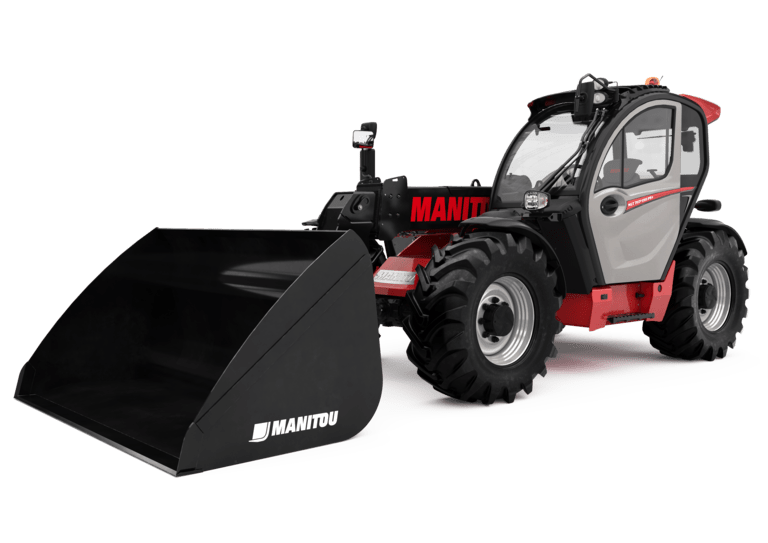

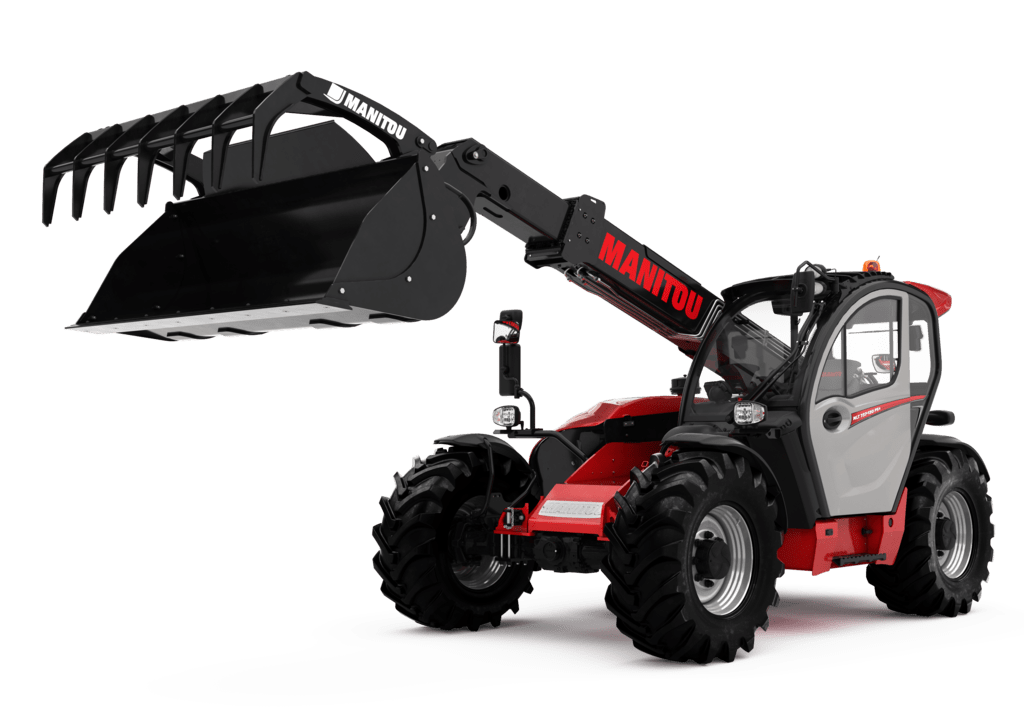

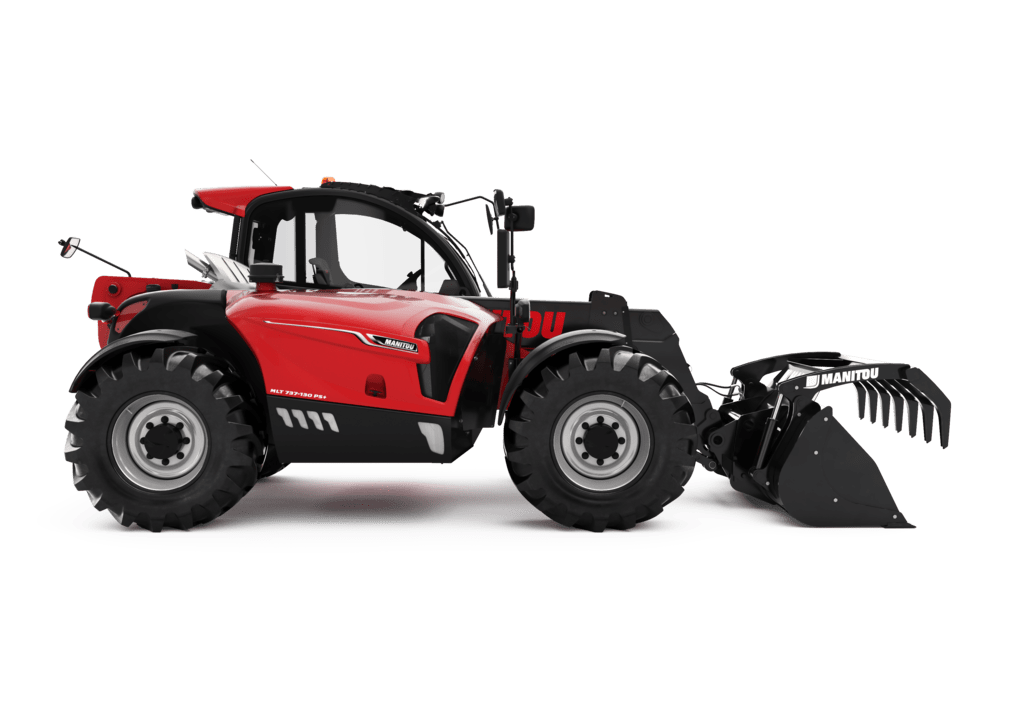

| MLT 737 Specifications |
|---|
| Capacities |
|---|
| Max. Capacity | 8157 lb |
| Max. Lifting Height | 22 ft 8 in |
| Max. Outreach | 12 ft 10 in |
| Reach at Max. Height | 3 ft 3 in |
| Breakout Force with Bucket | 6236 daN |
| Weight & Dimensions |
|---|
| Unladen Weight (with forks) | 16865 lb |
| Ground Clearance | 1 ft 4 in |
| Wheelbase | 9 ft 3 in |
| Overall Length to Carriage (with hitch) | 16 ft 4 in |
| Overall Length to Carriage (without hitch) | 15 ft 9 in |
| Front Overhang | 4 ft |
| Overall Width | 7 ft 10 in |
| Overall Cab Width | 3 ft 1 in |
| Overall Height | 7 ft 10 in |
| Tilt-Down Angle | 134° |
| Tilt-Up Angle | 12° |
| External Turning Radius (over tires) | 12 ft 11 in |
| Standard Tires | Alliance - A580 - 460/70 R24 159A8 |
| Drive Wheels (front / rear) | 2 / 2 |
| Steering Wheels (front / rear) | 2 / 2 |
| Performance |
|---|
| Lifting | 6.80s |
| Lowering | 7.10s |
| Extension | 5.80s |
| Retraction | 5.20s |
| Crowd | 3.20s |
| Dump | 2.80s |
| Engine |
|---|
| Engine | Deutz Stage V TCD 3.6 L4 |
| Number of Cylinders - Capacity of Cylinders | 4 - 221 in³ |
| I.C. Engine Power Rating / Power | 129 Hp / 95 kW |
| Max. Torque / Engine Rotation | 369 ft/lbs @1600 rpm |
| Drawbar Pull (Laden) | 7800 daN |
| Reversible Fan | Standard |
| Engine Cooling System | 4 radiators (water + intercooler + hydraulic oil + transmission oil) |
| HVO Validated (according to EN 15940 standard) | Yes |
| Transmission |
|---|
| Transmission Type | Torque converter |
| Gearbox | Powershift |
| Number of Gears (forward / reverse) | 6 / 3 |
| Max. Travel Speed (may vary according to applicable regulations) | 25 mph |
| Differential Lock | Limited slip differential on front axle |
| Parking Brake | Automatic negative parking brake |
| Service Brake | Oil-immersed multi-discs braking on front & rear axles |
| Hydraulics |
|---|
| Hydraulic Pump Type | Variable displacement pump |
| Hydraulic Flow - Pressure | 40 gpm - 3916 PSI |
| Flow Sharing Distributor | Standard |
| Tank Capacities |
|---|
| Hydraulic Oil | 36 gal |
| Fuel Tank | 32 gal |
| Diesel Exhaust Fluid (AdBlue® type) | 3 gal |
| Noise & Vibration |
|---|
| Noise at Driving Position (LpA) tested following NF EN 12053 norm | 72 dB |
| Noise to Environment (LwA) | 105 dB |
| Vibration to whole hand/arm | < 2.50 m/s² |
| Miscellaneous |
|---|
| Safety Cab Homologation | ROPS - FOPS level 2 cab |
| Controls | JSM |
| Optional Tires |
|---|
| Firestone R8000 UT - 460/70 R24 159A8 | 7'10" x 7'11" |
| Trelleborg TH400 - 460/70 R24 159A8 | 7'9" x 7'10" |
| Trelleborg TH400 - 500/70 R24 164A8 | 7'10" x 7'11" |
| Michelin XMCL - 500/70 R24 164A8 | 7'10" x 8' |
| Michelin BIBLOAD - 460/70 R24 159A8 | 7'9" x 7'10" |
| Michelin BIBLOAD - 500/70 R24 164A8 | 7'10" x 8' |
| Michelin XHA - 15.5 R25 158A2 | 7'9" x 7'10" |
| Nokian Tri Steel - 460/65 R24 156A8 | 7'9" x 7'10" |
| Michelin XMCL - 460/70 R24 159A8 | 7'9" x 7'10" |
| Vredestein Endurion - 460/70 R24 159A8 | 7'10" x 7'11" |
| Vredestein Endurion - 500/70 R24 164A8 | 7'11" x 8' |
| Trelleborg TH500 - 460/70 R24 159A8 | 7'9" x 7'10" |
| ALLIANCE A585 - 460/70 R24 159A8 | 7'9" x 7'10" |
